TTGO Electric Bicycle

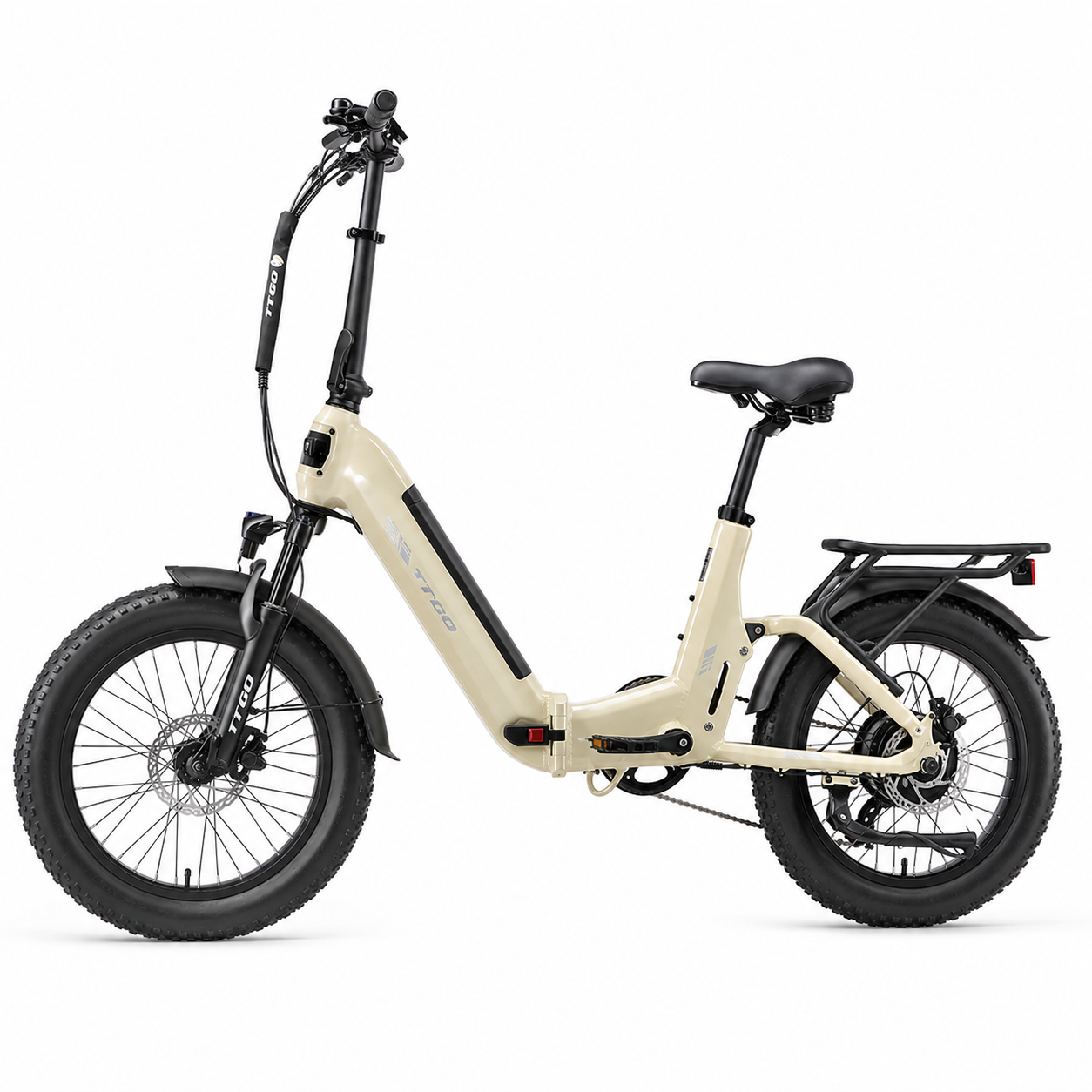

TTGO F7 Folding Fat-Tire E-Bike
Fold Smarter. Ride Further.The TTGO F7 is a premium folding fat-tire e-bike engineered for riders who demand more from every journey. Powered by a 720 Wh battery and a torque-sensing motor delivering 70 N·m of torque, the F7 offers up to 140...
Alle technischen Daten
Fold Smarter. Ride Further.
The TTGO F7 is a premium folding fat-tire e-bike engineered for riders who demand more from every journey. Powered by a 720 Wh battery and a torque-sensing motor delivering 70 N·m of torque, the F7 offers up to 140 km of natural, responsive pedal assistance — whether you're navigating city streets or exploring countryside routes.
The low-step folding aluminum frame with soft-tail rear suspension folds in seconds for effortless storage in your car boot, office or apartment. CST 20 × 3.0 in all-terrain fat tires, a lockable suspension fork and hydraulic disc brakes give you confident control on any surface.
Key Features
- 720 Wh battery — up to 120–140 km range on a single charge
- Torque sensor — natural, intuitive pedal assistance across 5 levels
- Triple shock absorption — lockable front fork + soft-tail rear suspension + fat tires
- Low-step folding frame — easy mount/dismount, compact storage
- Hydraulic disc brakes — reliable stopping power in all conditions
- Shimano 7-speed drivetrain — smooth gear changes for every terrain
- CST 20 × 3.0 in fat tires — all-terrain grip and stability
- E-mark LED lighting — recessed headlight and high-visibility taillight
- Color LCD display — speed, battery, assist level and trip distance at a glance
- Aluminum folding pedals — compact and durable
Electrical Specifications
- Motor: 250 W brushless rear hub motor | Max torque: 70 N·m
- Battery: 48 V, 15 Ah lithium-ion (720 Wh) | IPX5 rated
- Charger: 54.6 V, 3 A | Charging time: ~5–6 hours
- Top assisted speed: 25 km/h | Pedal-assist levels: 5
Frame & Components
- Frame: 6061 aluminum-alloy low-step folding frame with soft-tail rear suspension
- Front fork: Lockable high-performance suspension fork
- Tires: CST 20 × 3.0 in all-terrain fat tires
- Brakes: Hydraulic disc | Drivetrain: Shimano 7-speed
- Pedals: Aluminum folding | Saddle: Comfort custom saddle
Dimensions & Fit
- Total length: 173 cm | Folded: 86 × 45 × 73 cm
- Handlebar height: 119–133 cm | Seat height: 80–100 cm
- Wheelbase: 116 cm | Wheel diameter: 56 cm
- Bike weight: ~31 kg | Max load: 150 kg
- Recommended rider height: 165–195 cm
