HEYBIKE Electric Bike

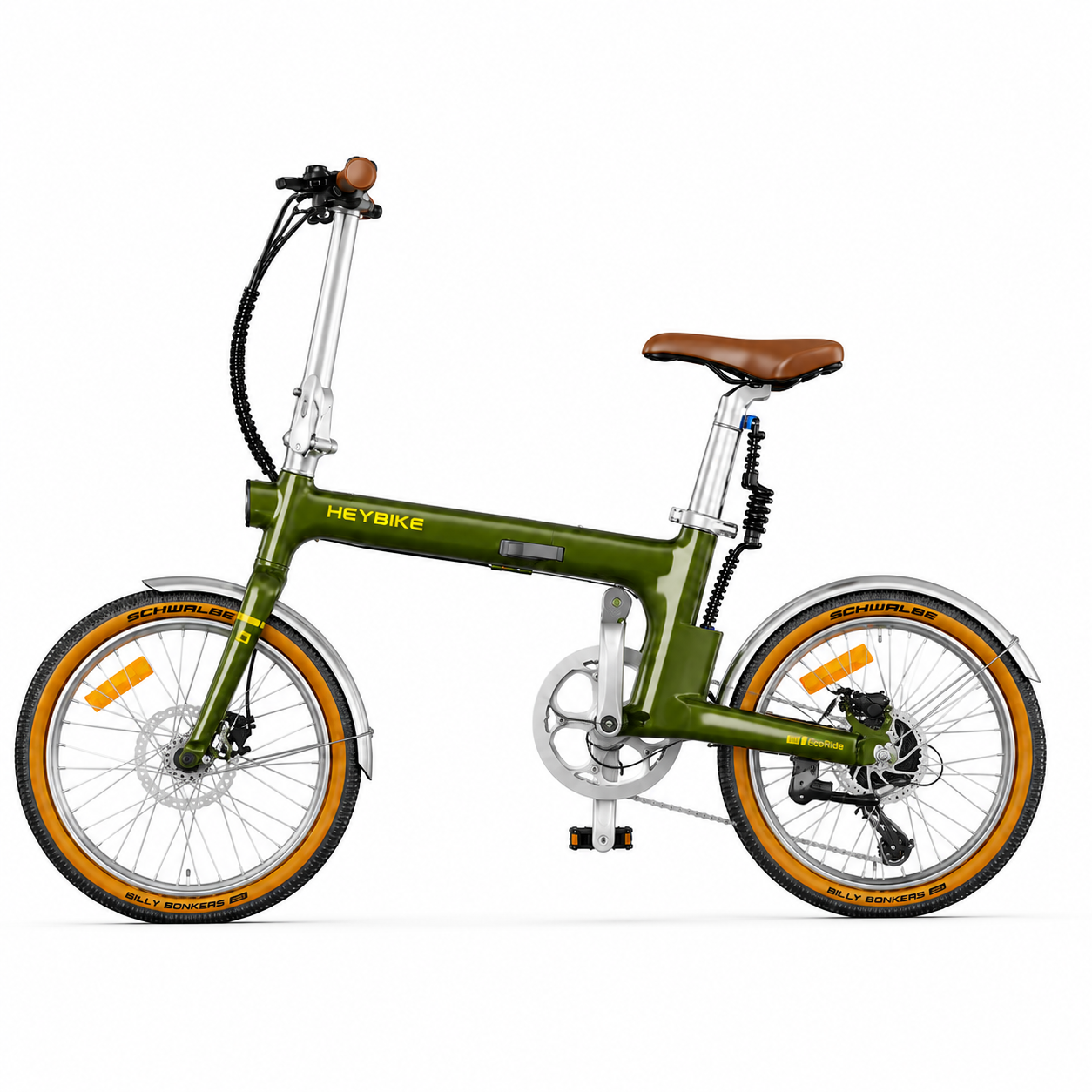

HEYBIKE Helio F – Folding Urban E-Bike
HEYBIKE Helio F — Folding Urban E-BikeThe Helio F is HEYBIKE’s most refined folding e-bike. A torque-sensing 250W rear hub motor delivers natural, responsive power, while the 360Wh integrated removable battery keeps you going for up to 120 km on pedal assist....
Alle technischen Daten
HEYBIKE Helio F — Folding Urban E-Bike
The Helio F is HEYBIKE’s most refined folding e-bike. A torque-sensing 250W rear hub motor delivers natural, responsive power, while the 360Wh integrated removable battery keeps you going for up to 120 km on pedal assist. TEKTRO HD-T275 hydraulic disc brakes and Shimano Altus 8-speed gearing give you confident control in any condition. The patented X-Fold magnetic closure system folds the bike in seconds — compact enough to stow under a desk, light enough at 18 kg to carry up stairs.
Key Features
- Motor: 36V 250W rear hub motor with torque sensor — natural, responsive power delivery
- Battery: 360Wh integrated removable lithium-ion — 80–120 km PAS range
- Top Speed: 25 km/h
- Gearing: Shimano Altus 8-speed derailleur
- Brakes: TEKTRO HD-T275 hydraulic disc brakes
- Folding: Patented X-Fold system with magnetic closure
- Frame: 6061 aluminium alloy, folding
- Fork: Hydroformed rigid fork with thru-axle
- Tires: CST 20 × 1.95 in
- Display: Left-mounted LCD with Bluetooth connectivity
- Weight: 18 kg
- Colors: Army Green / Burgundy Red
Technical Specifications
| Parameter | Specification |
|---|---|
| Motor | 36V 250W rear hub motor |
| Sensor | Torque sensor |
| Max Torque | 40 N·m |
| Battery | 360Wh lithium-ion (integrated, removable) |
| Charger | 42V, 100–240V, 2A |
| Top Speed | 25 km/h |
| PAS Range | 80–120 km |
| Charging Time | 4–6 hours |
| Display | Left-mounted LCD with Bluetooth |
| Lighting | Front LED + rear LED / brake light |
| Frame | 6061 aluminium alloy, folding |
| Folding System | Patented X-Fold with magnetic closure |
| Tires | CST 20 × 1.95 in |
| Derailleur | Shimano Altus 8-speed |
| Brakes | TEKTRO HD-T275 hydraulic disc |
| Fork | Hydroformed rigid, thru-axle |
| Bike Weight | 18 kg |
Geometry
| Parameter | Specification |
|---|---|
| Seat Tube Height | 32.6 cm |
| Chainstay Length | 42.5 cm |
| Effective Top Tube | 59.5 cm |
| Head Tube | 13.6 cm |
| Handlebar Height | 107 cm |
| Seat Height | 74–103 cm |
| Wheelbase | 96.8 cm |
| Total Length | 151 cm |
Package Contents
- Electric bike ×1, charger ×1
- User manual ×1, tools ×7, stickers ×2
- Phone holder ×1, decorative tape ×1, Heybike tag ×1
