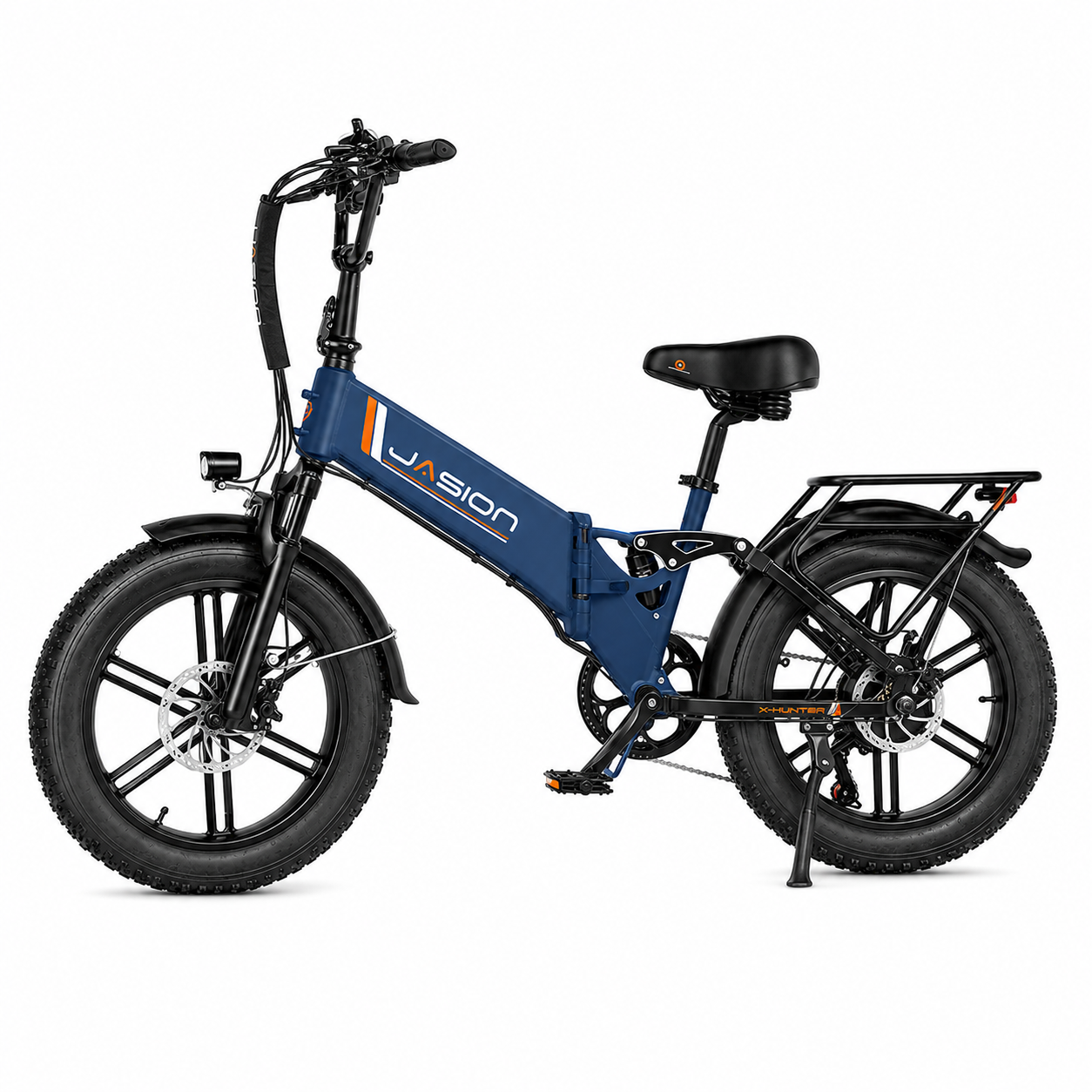

JASION X-Hunter ST – Low-Step Folding Full-Suspension Fat-Tire E-Bike
JASION X-Hunter ST — Low-Step Folding Full-Suspension Fat-Tire E-BikeThe X-Hunter ST is designed for riders who want effortless mounting and maximum versatility. The low-step aluminium-alloy folding frame houses an internally mounted 624Wh battery for a clean, integrated look, while hydraulic disc brakes...
Alle technischen Daten
JASION X-Hunter ST — Low-Step Folding Full-Suspension Fat-Tire E-Bike
The X-Hunter ST is designed for riders who want effortless mounting and maximum versatility. The low-step aluminium-alloy folding frame houses an internally mounted 624Wh battery for a clean, integrated look, while hydraulic disc brakes front and rear deliver precise stopping power in all conditions. A 250W BLDC motor with 85 N·m of torque, full dual suspension, and 20 × 4.0 in puncture-resistant fat tires handle city streets, gravel, sand and snow with equal ease. Integrated brake lights and turn signals add urban safety. Shimano 7-speed gearing and a colour display complete the package. CE certified. Available in Blue, White and Light Green.
Key Features
- Motor: 250W BLDC motor — 85 N·m max torque
- Battery: 48V 13Ah (624Wh) internally mounted lithium-ion
- Range: 45–110 km (PAS mode)
- Top Speed: 25 km/h (PAS level 5)
- Suspension: Full dual suspension (front + rear)
- Brakes: Hydraulic disc brakes (F&R) with integrated brake lights
- Drivetrain: Shimano 7-speed
- Tires: 20 × 4.0 in puncture-resistant fat tires
- Frame: Low-step aluminium-alloy folding frame
- Lighting: Integrated headlight + taillight with brake lights and turn signals
- Display: Colour display
- Payload: 180 kg
- Weight: 32.2 kg
- Certification: CE
- Colors: Blue / White / Light Green
Technical Specifications
| Parameter | Specification |
|---|---|
| Motor | 250W BLDC motor |
| Max Torque | 85 N·m |
| Controller | 48V / 13A |
| Battery | 48V 13Ah, 624Wh lithium-ion (internal) |
| Top Speed | 25 km/h (PAS level 5) |
| Range | 45–110 km (PAS mode) |
| Charging Time | 5–7 hours (2.0A charger) |
| PAS Levels | 0–5 |
| Throttle | Motorcycle-style twist throttle (subject to local law) |
| Display | Colour display |
| Certification | CE |
| Frame | Low-step aluminium-alloy folding, internal battery |
| Suspension | Full dual suspension (front + rear) |
| Tires | 20 × 4.0 in puncture-resistant fat tires |
| Brakes | Hydraulic disc brakes (F&R) |
| Drivetrain | Shimano 7-speed |
| Saddle | Ergonomic comfort saddle |
| Rear Rack | Included |
| Fenders | Front and rear included |
| Kickstand | Included |
| Net Weight | 32.2 kg |
| Max Payload | 180 kg* |
| Rider Height | 157–191 cm |
* Payload figure from the product summary banner. Please verify with supplier — the specification table states a different value.
Geometry & Dimensions
| Parameter | Specification |
|---|---|
| Seat Tube Length | ~36.6 cm |
| Chainstay Length | ~43.4 cm |
| Effective Top Tube Length | ~59.9 cm |
| Head Tube Length | ~16.0 cm |
| Handlebar Height | ~121.9 cm |
| Saddle Height (Min–Max) | 80.0–96.0 cm |
| Wheelbase | ~111.8 cm |
| Total Length | ~168.9 cm |
Package Contents
- X-Hunter ST e-bike ×1, battery ×1, charger ×1
- Fenders ×2, rear rack ×1, pedals ×2, kickstand ×1
- Toolkit ×1, keys ×2, user manual ×1
Service
- Warranty: 1 year
- Return / Exchange: 14 days
- EU Delivery: Approx. 5–7 business days (free shipping)
