JASION Electric Bike
JASION RetroVolt – Motorcycle-Style Fat-Tire E-Bike
JASION RetroVolt — Motorcycle-Style Fat-Tire E-BikeThe RetroVolt is built for riders who want the attitude of a motorcycle and the practicality of an e-bike. A high-carbon-steel frame with full suspension soaks up urban roads and mixed terrain alike, while 20 × 4.0...
Alle technischen Daten

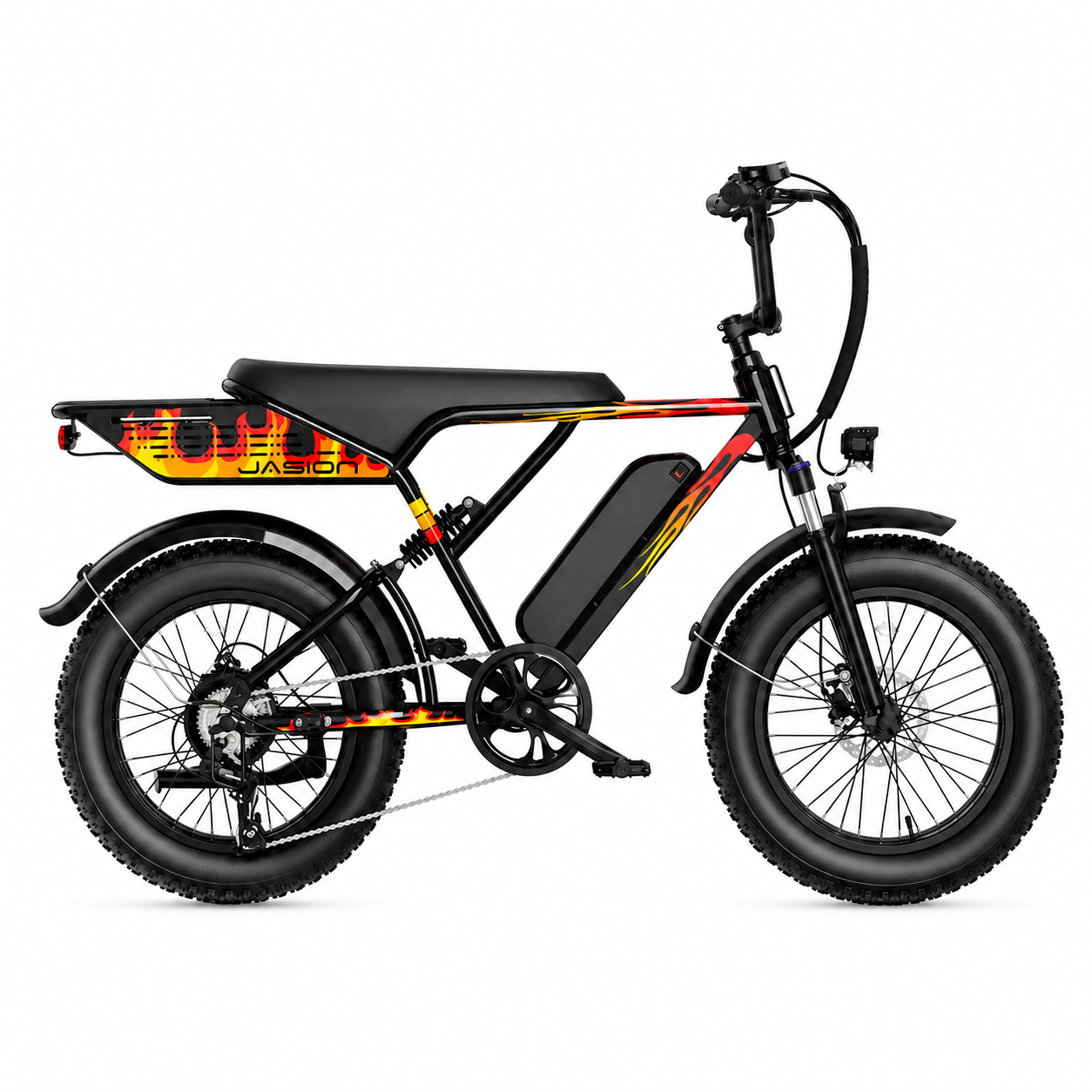

JASION RetroVolt — Motorcycle-Style Fat-Tire E-Bike
The RetroVolt is built for riders who want the attitude of a motorcycle and the practicality of an e-bike. A high-carbon-steel frame with full suspension soaks up urban roads and mixed terrain alike, while 20 × 4.0 in fat tires grip whatever surface you throw at them. The removable 600 Wh battery delivers up to 80 km of range in PAS mode, and Shimano 7-speed gearing keeps you in control at every pace. At 37 kg with a 150 kg payload rating, the RetroVolt is a serious machine dressed in retro style. CE certified for European roads.
Key Features
- Motor: 250W brushless hub motor (peak 750W) — 70 N·m torque
- Battery: 48V 12.5Ah (600Wh) removable lithium-ion
- Range: Up to 80 km (PAS level 1) / 35 km throttle-only
- Top Speed: 25 km/h (PAS level 5)
- Suspension: Full suspension with suspension front fork
- Tires: 20 × 4.0 in fat tires
- Brakes: Mechanical disc brakes, 180 mm rotors front and rear
- Drivetrain: Shimano 7-speed
- Frame: High-carbon steel
- Lighting: LED headlight
- Payload: 150 kg
- Weight: 37 kg
- Certification: CE
- Colors: Army Green / Flame Black
Technical Specifications
| Parameter | Specification |
|---|---|
| Motor | 250W brushless hub motor (peak 750W) |
| Torque | 70 N·m |
| Sensor | Cadence sensor |
| Battery | 48V 12.5Ah, 600Wh lithium-ion (removable) |
| Top Speed | 25 km/h (PAS level 5) |
| Range | Up to 80 km (PAS 1) / 35 km (throttle only) |
| Charging Time | 5–6 hours |
| Display | LCD display |
| Ride Modes | Pedal assist + throttle (subject to local law) |
| Certification | CE |
| Frame | High-carbon steel |
| Suspension | Full suspension with front fork |
| Tires | 20 × 4.0 in fat tires |
| Brakes | Mechanical disc brakes, 180 mm rotors (F&R) |
| Drivetrain | Shimano 7-speed |
| Lighting | LED headlight |
| Net Weight | 37 kg |
| Max Payload | 150 kg |
Fit & Geometry
| Parameter | Specification |
|---|---|
| Recommended Rider Height | 160–190 cm |
| Total Length | 170 cm |
| Handlebar Width / Height | 70 cm / 110 cm |
| Wheelbase | 108 cm |
| Wheel Diameter | 58 cm |
| Min Seat Height | 62 cm |
| Standover Height | 92 cm |
| Frame Stack | 53 cm |
| Chainstay Length | 50 cm |
| Head Tube Length / Angle | 15 cm / 73° |
Package Contents
- RetroVolt electric bike ×1
- Fenders ×2, pedals, kickstand ×1, charger ×1
- Toolkit ×1, user manual ×1
