JASION Electric Bike

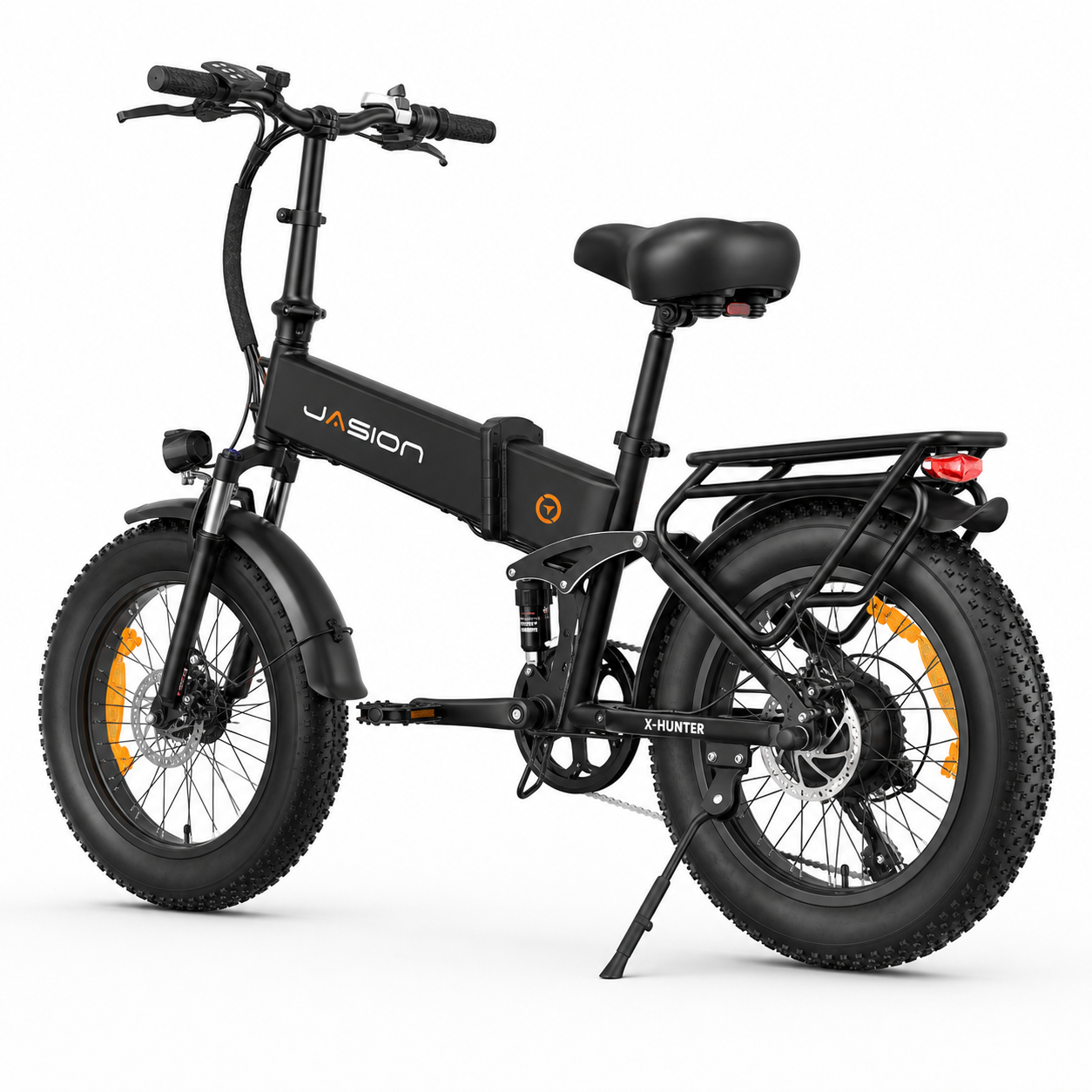

JASION X-Hunter – Folding Full-Suspension Fat-Tire E-Bike
JASION X-Hunter — Folding Full-Suspension Fat-Tire E-BikeThe X-Hunter is built for riders who refuse to be limited by terrain. A 250W brushless hub motor paired with a 624Wh removable battery delivers up to 110 km of range in PAS mode, while the...
Full specifications
JASION X-Hunter — Folding Full-Suspension Fat-Tire E-Bike
The X-Hunter is built for riders who refuse to be limited by terrain. A 250W brushless hub motor paired with a 624Wh removable battery delivers up to 110 km of range in PAS mode, while the full-suspension aluminium frame — adjustable front fork and four-link rear suspension — absorbs everything from city potholes to gravel trails. 20 × 4.0 in fat tires handle city streets, gravel, sand and snow with equal confidence. Shimano 7-speed gearing, mechanical disc brakes, integrated lighting with rear turn indicators, and a multi-stage quick-release folding system make the X-Hunter a complete all-terrain commuter. CE certified. Available in Black and Blue.
Key Features
- Motor: 250W brushless hub motor — 85 N·m max torque
- Battery: 48V 13Ah (624Wh) removable lithium-ion, IPX6 sealed
- Range: 45–110 km (PAS mode)
- Top Speed: 25 km/h (PAS level 5)
- Suspension: Full suspension — adjustable front fork + four-link rear
- Tires: 20 × 4.0 in fat tires
- Brakes: Mechanical disc brakes, 160 mm rotors (F&R)
- Drivetrain: Shimano 7-speed
- Frame: Aluminium-alloy folding frame
- Lighting: LED headlight + rear taillight with turn indicators
- Folded Size: 110 × 60 × 83 cm
- Payload: 180 kg
- Weight: 32 kg
- Certification: CE
- Colors: Black / Blue
Technical Specifications
| Parameter | Specification |
|---|---|
| Motor | 250W brushless hub motor |
| Max Torque | 85 N·m |
| Sensor | Cadence sensor |
| Battery | 48V 13Ah, 624Wh lithium-ion (removable, IPX6) |
| Top Speed | 25 km/h (PAS level 5) |
| Range | 45–110 km (PAS mode) |
| Charging Time | 5–6 hours |
| Display | LCD display |
| Ride Modes | Pedal assist + throttle (subject to local law) |
| Certification | CE |
| Frame | Aluminium-alloy folding |
| Front Suspension | Manually adjustable suspension fork |
| Rear Suspension | Four-link rear suspension |
| Tires | 20 × 4.0 in fat tires |
| Brakes | Mechanical disc brakes, 160 mm rotors (F&R) |
| Drivetrain | Shimano 7-speed |
| Rear Rack | Included |
| Fenders | Front and rear included |
| Kickstand | Included |
| Net Weight | 32 kg |
| Max Payload | 180 kg |
| Rider Height | 155–190 cm |
Geometry & Dimensions
| Parameter | Specification |
|---|---|
| Handlebar Width | 70 cm |
| Head Tube Length | 14 cm |
| Chainstay Length | 43 cm |
| Wheelbase | 112 cm |
| Total Length | 170 cm |
| Overall Wheel Diameter | 59 cm |
| Handlebar Height | 116 cm |
| Saddle Height (Min–Max) | 75–95 cm |
| Folded Size | 110 × 60 × 83 cm |
Package Contents
- X-Hunter e-bike ×1, battery ×1, charger ×1
- Fenders ×2, rear rack ×1, pedals ×2, kickstand ×1
- Toolkit ×1, keys ×2, user manual ×1
